General
Two-seat high-wing cabin monoplane. Compared to its sibling the 120 (which see) it has an electrical system, flaps and and rear cabin windows. The aircraft received its Approved Type Certificate number 768, amendment 5A2. Price ex-factory was US$ 3695. ICAO type designation is ‘C140’.
The Cessna 142 was a Cessna 140 with nosewheel. It was the functional prototype for the Cessna 150 (which see). A single prototype was build; no other information and no photographs are available.
last update: 7 September 2006
History

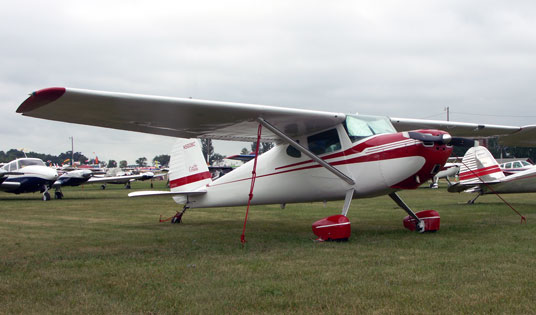

The 140A is the successor to the original 140 (which see). It has an all-metal wing and a single wing strut compared to the 140s twin wing struts. The prototype made the first flight in January 1949. A total of 525 were build. Production started in 1949 and ended in 1951.
Airframe
wing: High-wing semi-cantilever strut-braced monoplane. Two-spar constant-chord structure of all-metal construction. Manually actuated plain flaps. Ailerons are entirely made of metal. Airfoil section NACA-23012.
fuselage: All aluminium-alloy monocoque structure.
tail: All-metal cantilever monotype; trim-tab in starboard elevator.
landing gear: Fixed tailwheel type landing gear with hydraulically actuated disc brakes and steerable tailwheel. Edo floats or skis optional.
Powerplant
- One Continental C90-12F horizontally-opposed, air-cooled 4-cylinder engine delivering 90 hp (67 kW).
- Engine drives a 2-blade fixed-pitch wooden propeller.
- Total fuel capacity 94 l (25 USG); 2 all-metal fuel tanks in wing.
Systems
- Electrical system: standard, 12V DC, consisting of generator, battery and engine starter.
Avionics
Communications radio optional.
Accommodation
Fully enclosed cabin seating 2 side-by-side with dual controls. Cabin door on each side, luggage area behind seats, capacity 36 kg (80 lbs). Ventilation standard, heating system optional.
Armament
N/A
Dimensions
External:# wing span; 10.00 m / 32.81 ft# overall length; 6.40 m / 21.00 ft# overall height; 1.91 m / 6.27 ft# wing chord at root; 1.84 m / 6.04 ft# tailplane span; 2.69 m / 8.83 ft# wing area; 14.8 sq m / 159 sq ft# landing gear track; 1.96 m / 6.43 ft
Weights & Loads
max. t-o weight; 680 kg / 1500 lbs# empty weight; 409 kg / 900 lbs# useful load; 271 kg / 600 lbs# wing loading; 46 kg/sq m / 9.4 lb/sq ft# power loading; 7.6 kg/hp / 16.7 lb/hp
Performance
max. speed, level flight; 108 kts / 200 km/h# cruise speed; 95 KTAS / 176 km/h# service ceiling; 15600 ft / 4760 m# max. rate of climb; 690 fpm / 3.5 m/s
